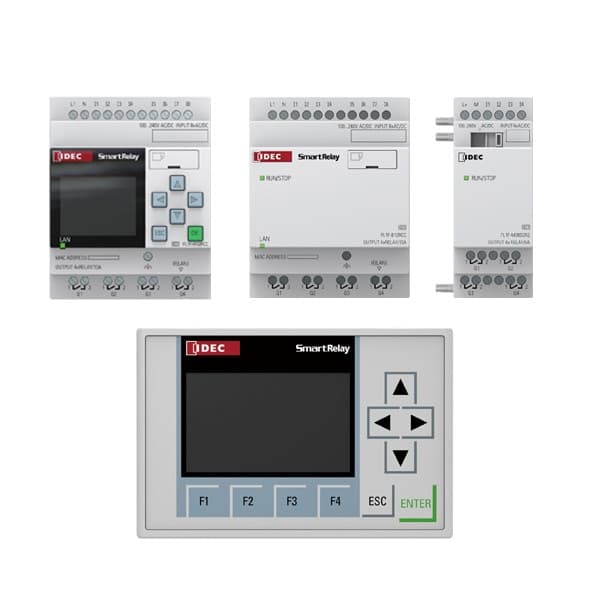

FL1F SmartRelay

This compact and powerful SmartRelay now equipped with features that comparable to a micro PLC. Standard features such as universal voltage, built-in analog inputs, real time clock, 10 Amp relays outputs, that imprinted with IDEC SmartRelay, now we’ve even added more features: MQTT, Batch download, Email, and WebServer functions. Modbus TCP Client/Server, Access Tool for Microsoft Excel, Web Page Editor, and the ability to support -20 to 55 degree C operating temperature.
The new FL1F SmartRelay CPU base module comes standard with embedded RJ45 Ethernet port. Program can be remotely monitored, download and upload using this port. Special programming cable is no longer required. Using standard web browser, users can easily monitor and control the SmartRelay. Program storage and transfer is never easier with the embedded Micro SD port. Special memory cartridge is no longer required. This makes it easier for OEM to update and manage programs. Data logging is also supported.

Additional enhancements including ability to network up to 16 SmartRelay over Ethernet network, an improved LCD display, and improved Real Time Clock backup with up to 480 hours.

Up to 60 I/Os can now be configured with the new digital and analog expansion modules. These new expansion modules are not compatible with the previous SmartRelay models.

A new and improved Text Display Panel is also available for applications that require visual interface. Up to 6 lines and 20 character lines (which is more than twice compared to previous models) can be configured.
