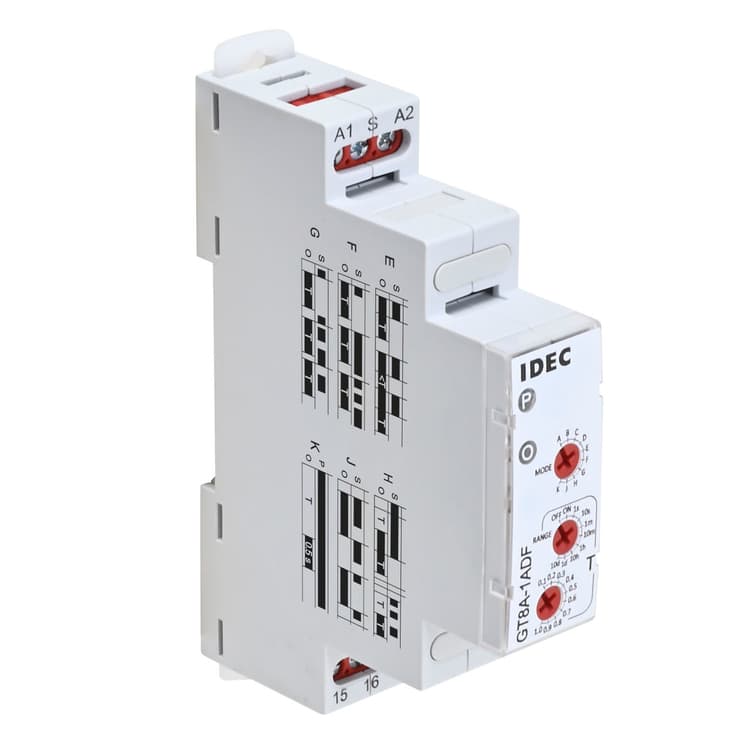

GT8A Slim Timer Relay

A slimline (17.5mm) relay to save control panel space

Both versions of the GT8A slim timer relay (1 contact and 2 contact) are compact, at just 17.5mm wide. Less installation space is required (compared to a combination of equivalent products), helping users to optimize space in control boxes.

Simple installation and setup

The GT8A timer relay mounts directly onto a DIN rail – no socket needed. This direct integration makes the timer easier to install, wire, and swap out.

10 time functions and 8 (+2) time ranges

The GT8A enables you to customize the time function and time range settings for your machinery and application. The inset dials prevent accidental setting adjustments.

Increased operational efficiency

Once the timer relay is in place and initial settings are complete, you can leave the GT8A to run reliably. Manual adjustments are only needed as and when you require them.


Product detail
Product detail

Key Features

  • Universal AC/DC power voltage (12 to 240V AC/DC)
  • Slim 17.5mm width (1 contact type and 2 contact type)
  • Multiple time functions including ‘on delay’, ‘on for a set interval’, ‘flicker (starting off)’, ‘flicker (starting on)’, ‘off delay’, ‘once at a set interval’, and ‘on and off delay’
  • Multiple time ranges including ‘permanently on’ and ‘permanently off’
  • Safety compliance: EN 61812-1, CE, UKCA, RoHS, EAC, UL/c-UL
  • Finger-safe IP20 protection rating
2 Products
Filters
  1. GT8A-2ADF - GT8A Slim Timer Relay
    GT8A Slim Timer Relay
    GT8A-2ADF

    Timer GT8A-2ADF designed for durability and efficiency in demanding applications. The compact 17.5mm-wide timer is a 2-contact versions and mount directly onto a DIN rail for easy installation. Features 10 time functions with 10 different time ranges. Universal 12–240V AC/DC input power,

  2. GT8A-1ADF - GT8A Slim Timer Relay
    GT8A Slim Timer Relay
    GT8A-1ADF

    Timer GT8A-1ADF designed for durability and efficiency in demanding applications. The compact 17.5mm-wide timer is a 1-contact versions and mount directly onto a DIN rail for easy installation. Features 10 time functions with 10 different time ranges. Universal 12–240V AC/DC input power,

Showing 1~ 2 of 2 Products
