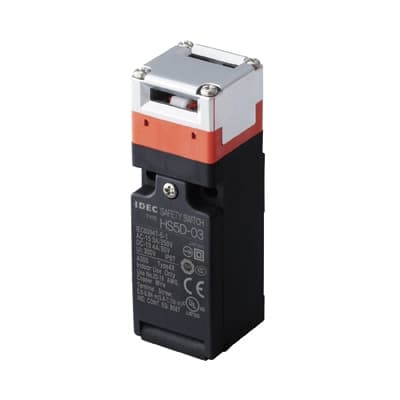

Key Features
- Equipped with a 'Operation Head Detachment Detection Function' that turns OFF the main circuit (11-12) when the operation head is removed.
- Achieves three contacts with doubled contacts plus a monitor contact in the same size as the 2-contact type (HS5B model).
- Compact size suitable for installation in narrow spaces. (30×30×91mm)
- The actuator is compatible with HS5B/5E models.
- Double insulation structure that does not require grounding wiring.
- Allows for 8 patterns of actuator insertion by changing the mounting direction of the operation head, supporting diverse installation options.
- Contact section has IP67 (IEC60529) protection structure.
- NC contacts feature direct opening operation function. (IEC/EN60947-5-1)
- Prevents disabling with a dedicated actuator. (ISO14119, EN1088)
- Improved wiring with M3 terminal screws.
- Uses gold-plated contacts compatible with micro loads.
Specifications
Expand All
+Documents and Files
Miniature Interlock Switches HS5D
28/08/2023.PDF531.54KB
