Would driverless vehicles enhance your operations?

Collaborative workspaces

Bring AGVs/AMRs into your work environment

Safety compliance

Meet strict requirements of international safety standards

All-in-one solutions

Achieve a custom build with device compatibility

Ensure simple integration and compliance with international safety standards

AGV/AMR solutions for easy system integration

Design for specific requirements and mobile robot use cases

Use fewer components, avoid incompatible devices

Comprehensive built-in safety functions

Collaborative Safety: humans and machines in harmony

Simpler system and device maintenance

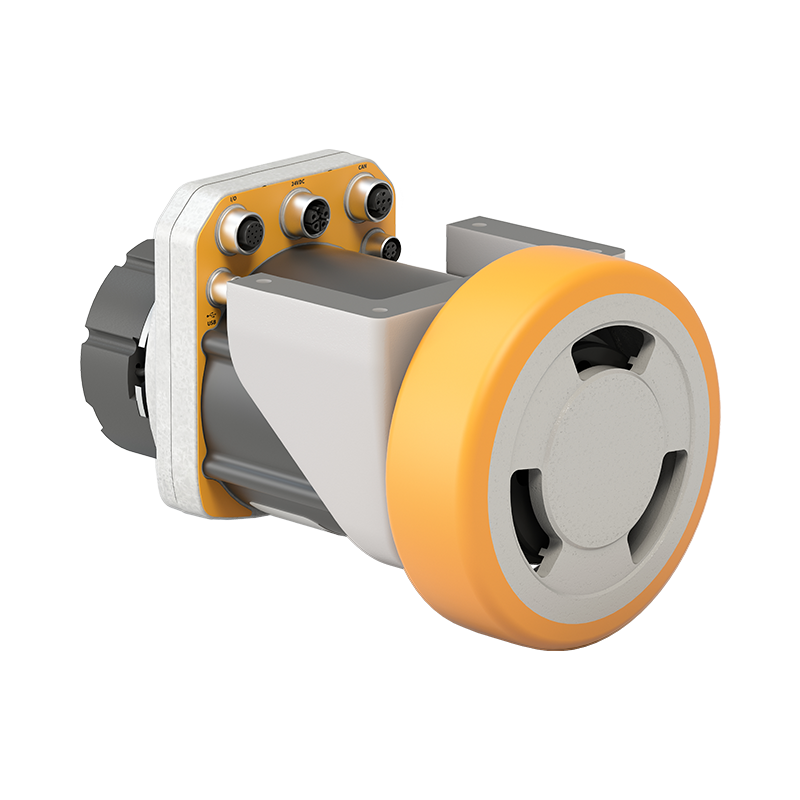

Safety Wheel Drive

AGVs and AMRs need to be agile and flexible: to navigate effectively, and to detect and avoid human presences and other obstacles. Safety Wheel Drive (SWD) is an all-in-one electric wheel system with a compact design.

Self-contained: motor, battery, and control electronics in one unit
Integration with AGV/AMR drive and safety systems
Safety features fully compliant with ISO 3691-4 standard
Built-in safe speed, direction, and braking controls
Durable construction and smooth operation

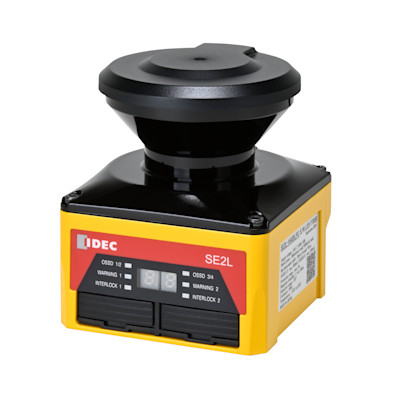

SE2L Advanced safety laser scanner

Safety laser scanners, such as the SE2L Advanced, significantly enhance human/obstacle detection for AGVs/AMRs. A pair of scanners mounted in optimal positions can provide 360-degree monitoring around a mobile vehicle.

270-degree sensing angle
30m warning zone, 5m protection zone
128 custom protection area patterns
Enhanced Ethernet connectivity
PLd, Safety Category 3, SIL2

X series emergency stop switches

To fulfill ISO 3691-4 safety requirements, safe stopping for AGVs/AMRs must include a built-in emergency stop function. Our X series of emergency stop switches can be easily integrated with an AGV or AMR.

Compact 16mm diameter and short body options
Minimal installation footprint to easily fit on mobile robots, etc.
Compliant with ISO 13850 standard for e-stops
Indicator (unlocked state) visible at a glance
Illuminated switch version available (optional)

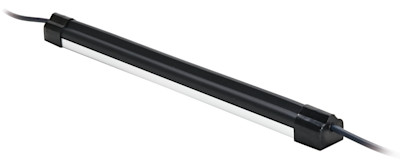

HK2H safety edge switch

Fitting a HK2H pressure-sensitive safety edge switch around an AGV/AMR increases the protection level for both the mobile robot and any humans in its path. If an obstacle comes into contact with the switch, any connected device stops immediately to prevent injury and/or damage.

Lightweight design with removable aluminum channel
Low-profile look that blends in on small AGVs/AMRs
Wiring and mounting options to suit the application
Compatible with IDEC safety relay modules (sold separately)

Each AGV and AMR should be designed for the individual application, and with comprehensive safety built in from the start. Integrating IDEC safety solutions with mobile robots enhances driverless systems in several ways:
