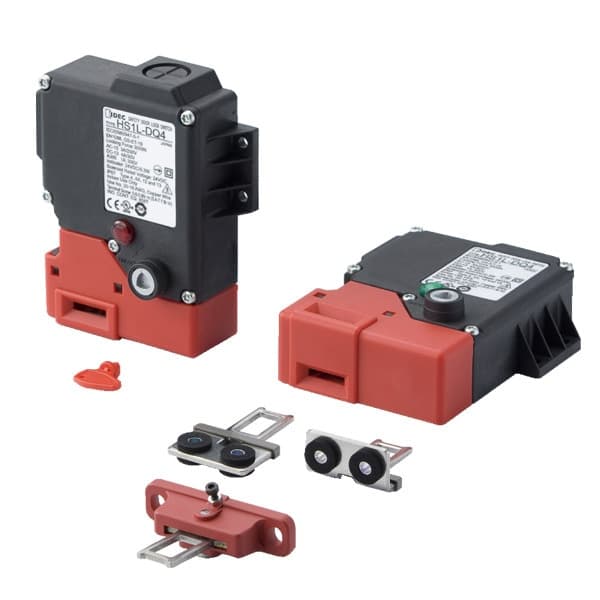

HS1L Full-size Locking
Achieves a locking strength of 3000N! Ideal for large, heavy doors that require strong locking strength.
Key Features
- The actuator is compatible with the HS1E type (lock strength 3000N).
- It has 6 built-in contacts, and the external dimensions and mounting dimensions are the same as the HS1E type.
- The external dimensions are 35×104×129mm.
- It can monitor the door's open/close status and lock status separately, meeting a variety of needs.
- Improvements to the solenoid unit have reduced power consumption by approximately 32%, achieving energy savings. (Compared to HS1E type, according to our research) Manual lock release key and indicator light (LED) are standard equipment.
- The manual lock release key allows manual unlocking during power outages or maintenance.
- The indicator light operates on an independent circuit and can be used freely for various applications.
- Two types of locking mechanisms are available: a spring lock type that unlocks by energizing the solenoid, and a solenoid lock type that locks by energizing the solenoid.
- M3 terminal screws are used for wiring.
- Usable temperature range is wide, from -20 to +55°C.
