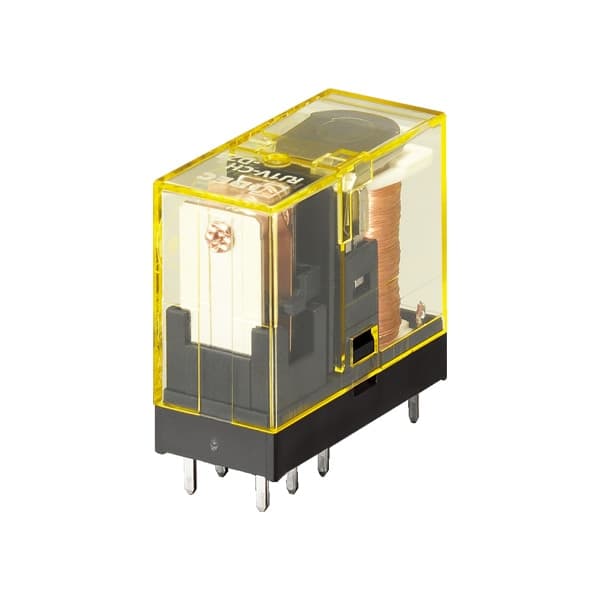

Key Features
- Contact structures available: SPDT, SPST-NO, DPDT, DPST-NO. SPDT and SPST-NO contacts are available in 16A high-capacity type.
- The body width is only 12.7mm, small in size, with high allowable contact current. RJ1V (single pole): 12A/16A RJ2V (double pole): 8A
- IDEC's unique spring release structure ensures excellent durability. Electrical durability: over 200,000 cycles (AC load) Mechanical durability: over 30 million cycles (AC coil ∙ SPDT contact)
- Solder seal structure
- Compliant with the RoHS directive for environmental protection. According to EU Directive 2002/95/EC, does not use specified substances harmful to the environment: lead, cadmium, mercury, hexavalent chromium, PBB, PBDE. Certified by Lloyd's Register standard.
Documents and Files
RJ Series Slim Power Relays (PC Board Terminal)
01/09/2025.PDF260.58KB
Relay Family Brochure
25/08/2023.PDF359.51KB
Quick Selection Guide
25/08/2023.PDF5.52MB
