RC Series PCB Relays

RC1V-AH-D48

Compact and durable RC1V-AH-D48 model designed for reliable performance in various applications.

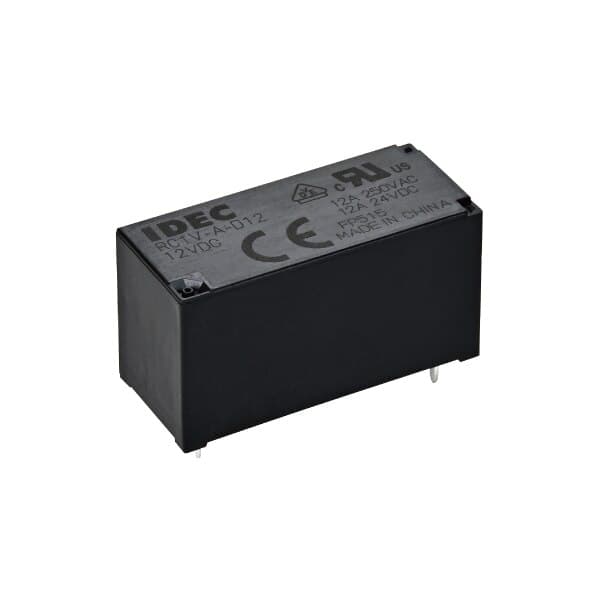

RC1V-AH-D48 - View 1

Select Quantity

Key Features

  • High capacity with 1c contact・16A, 2c contact・8A.
  • Compact low-profile relay with width 12.8mm × height 16.5mm (average dimensions, RC2V type)
  • c-UL, VDE, CQC certified product
Specifications
Expand All
+

Documents and Files

RC1V-AH-D (2D DXF)18/04/2023.DXF0.67KB
RC1V-AH-D5/-D12/-D24/-D48/-D100 (3D IGS)18/04/2023.IGS486.15KB
RC1V-AH-D5/-D12/-D24/-D48/-D100 (3D x_t)18/04/2023.X_T83.38KB
RC1V-AH-D5/-D12/-D24/-D48/-D100 (3D STEP)18/04/2023.STEP63.71KB
