NRP Series

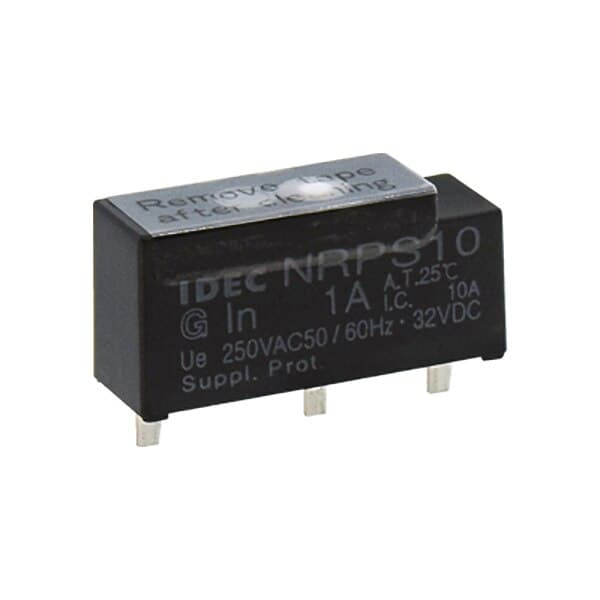

NRPS10-G2A
Compact and durable NRPS10-G2A device designed for reliable performance in various applications.
Select Quantity
Key Features
- SIL type with IC terminal pitch, can be directly mounted on PLC boards.
- Simple structure achieves highly reliable overcurrent protection.
- Thermal trip method (bimetal type) prevents false operation (disconnection) caused by deterioration from inrush current like fuses.
- Selectable rated current equivalent to the protected target, enabling overload protection even for circuits with large inrush currents difficult for fuses.
- Lifetime is 200 cycles (trip at 200% of rated current).
- Reusable, more economical and low maintenance compared to fuses.
- Available in slim type and flat type.
- Slim type can be automatically mounted on boards by mounting machines.
- Available in non-seal type and seal type.
- Seal type allows cleaning after soldering.
- Equipped with manual off mechanism convenient for circuit inspection.
- This product serves as a Supplementary Protector.
Documents and Files
NRP Catalog
11/04/2024.PDF152.02KB
