XW 22mm Estop

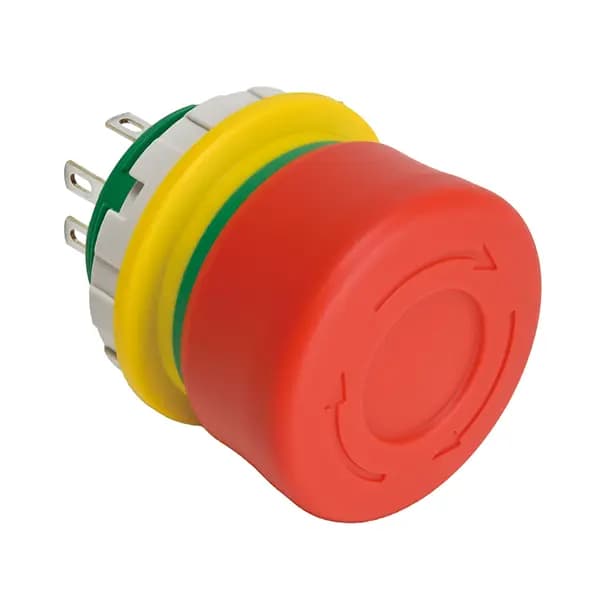

XW1E-BV3SG12TRH
Compact and reliable XW1E-BV3SG12TRH model, designed for efficient performance and durability.
Log in to view product availability.
Key Features
- Equipped with a safety mechanism that shifts to the safe side (OFF) even if damaged by excessive impact, ensuring the safety of operators and equipment. (Safe break action, safety potential structure)
- The indicator function type, which makes the contact operation status immediately clear, contributes to reducing maintenance man-hours.
- Integrated type / illuminated type (24V, for battery operation) are available in the lineup.
- The illuminated type also achieves the same depth dimension as the non-illuminated type.
- Available with 1 to 4 main contacts (b contacts) and 1 to 2 monitor contacts (a contacts).
- Supports two types of reset operations (push-lock-pull or turn reset).
- Direct opening operation function (IEC60947-5-5 clause 5.2, compliant with IEC60947-5-1 annex K).
- Safety lock mechanism (IEC60947-5-5 clause 6.2).
- Protection structure IP65, IP67 (IEC60529).
- Contacts are silver with gold and crossbar contacts.
- Screw terminal type standardly adopts finger protection structure (IP20).
- UL emergency stop category certified product.
- Integrated type / illuminated type and indicator type are available.
Specifications
Expand All
+Documents and Files
ø16 XA / ø22 XW Series Emergency stop switches (unibody/illuminated)
01/09/2025.PDF1.08MB
X Series Catalog
04/09/2025.PDF2.94MB
