XW 22mm Estop

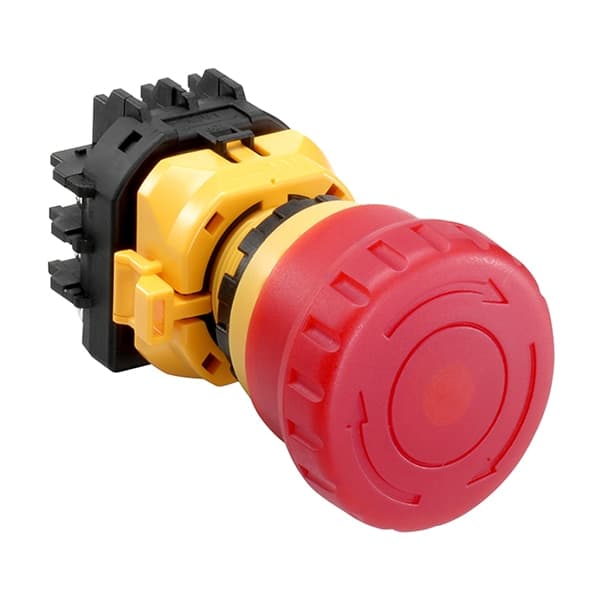

XW1E-LV413Q4MR
Compact and durable XW1E-LV413Q4MR model, designed for reliable performance in various applications.
Select Quantity
Key Features
- Equipped with a safety mechanism that shifts to the safe side (OFF) even if damaged by excessive impact, ensuring the safety of operators and equipment. (Safe break action, safety potential structure)
- The indicator function type, which makes the contact operation status immediately clear, contributes to reducing maintenance man-hours.
- Integrated type / illuminated type (24V, for battery operation) are available in the lineup.
- The illuminated type also achieves the same depth dimension as the non-illuminated type.
- Available with 1 to 4 main contacts (b contacts) and 1 to 2 monitor contacts (a contacts).
- Supports two types of reset operations (push-lock-pull or turn reset).
- Direct opening operation function (IEC60947-5-5 clause 5.2, compliant with IEC60947-5-1 annex K).
- Safety lock mechanism (IEC60947-5-5 clause 6.2).
- Protection structure IP65, IP67 (IEC60529).
- Contacts are silver with gold and crossbar contacts.
- Screw terminal type standardly adopts finger protection structure (IP20).
- UL emergency stop category certified product.
- Integrated type / illuminated type and indicator type are available.
Specifications
Expand All
+Documents and Files
XW (UL)
27/12/2024.PDF429.11KB
XW (c-UL)
25/12/2024.PDF386.62KB
XA/XW/XN (CE)
09/06/2025.PDF211.21KB
XA/XN/XW (TUV-S)
09/06/2025.PDF453.63KB
XA/XW/XN (UKCA)
06/06/2025.PDF202.65KB
XW e-stop (CCC)
09/09/2024.PDF2.05MB
