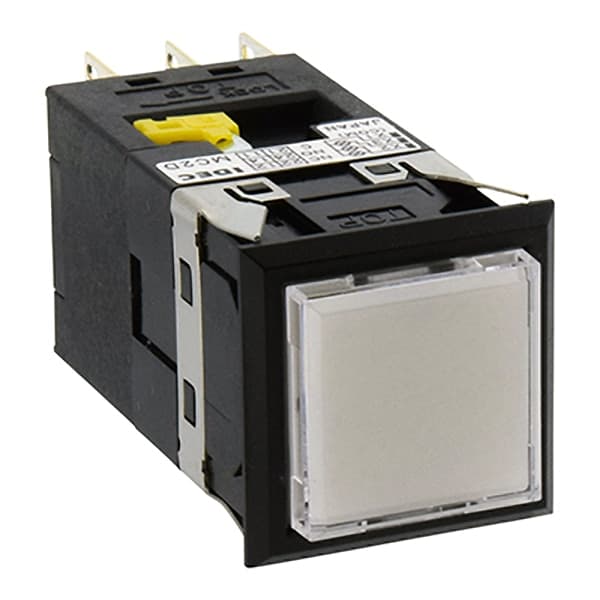

Key Features
- The operating part and contact part adopt a separated structure to further improve ease of use.
- Equipped with a snap action mechanism that provides excellent operating feel.
- Solder terminals support positive lock connectors, enhancing safety and making wiring easier.
- The illuminated surface can be divided from the entire surface up to 4 segments (2 segments for MC2D type), allowing selection from a wide variety of types in combination with operation type, operating part shape, and main body shape.
- Standard equipped with Y mechanism (a mechanism where the contacts do not operate when the illuminated part is inserted), so power off of the device is not required when changing the illuminated part.
- UL, c-UL certified product. Compliant with EN (European) standards. CCC (except for indicator lights).
Specifications
Expand All
+Documents and Files
MC2D-xx0x (2D DXF)16/01/2025.DXF12.72MB
MC2D-M-S-A-20-60-x (3D IGS)23/01/2025.IGS1.58MB
MC2D-M-S-A-20-60-x (3D x_t)23/01/2025.X_T346.57KB
MC2D-M-S-A-20-60-x (3D STEP)23/01/2025.STEP705.29KB
